Light Fence with LDR

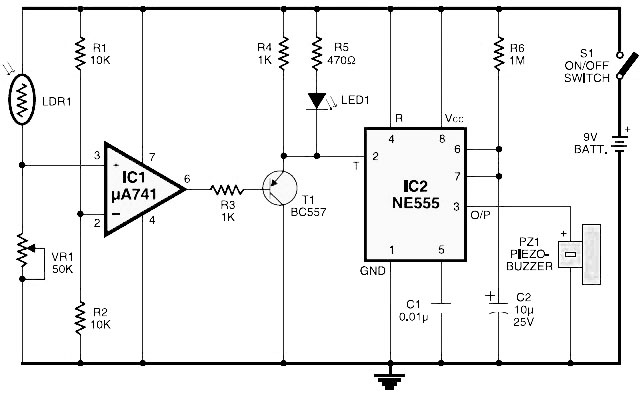

light fence circuit diagram

This is the light fence schematic diagram uses LDR as the light sensing. The fundamental issue with the greater part of standard light sensors is that they require exact arrangement of light bar to quiet the circuit throughout standby mode. The circuit portrayed here is sensitive to the point that it will catch a moving individual at a separation of not many metres in sunshine or under electric lighting without unwieldy arrangement of light pillar. It requires essentially no set up, and may be basically put inside the viewable pathway of just about any light source incorporating encompassing sunlight or fluorescent electric light. The beep produced from the circuit will be noisy enough to locate the passage of an individual in the room or the secured region being protected.

The circuit utilizes a voltage comparator and a monostable clock to give the cautioning caution on distinguishing a moving individual. Ic uA741 (IC1) is utilized as a voltage comparator with two potential dividers in its upsetting and noninverting inputs. Resistors R1 and R2 give half-supply voltage of 4.5 volts to its transforming include (pin 2). LDR1 and preset VR1 structure an alternate potential divider to furnish a variable voltage include to the non-upsetting enter (stick 3).

In the event that Vr1 is fittingly balanced for the obliged light level, the yield of Ic1 will be high, which drives pnp transistor T1 out of conduction. This is because of the high potential at the base of T1. The emitter voltage of T1 will be high in this condition, which hinders Ic2 from wavering and Led1 from lighting. Ic2 is wired as a monostable clock. R6 and C2 give a preset time delay.

As an individual crosses the secured territory, his shadow will be sensed by LDR1 because of progress in the light power level and the voltage at the non-modifying include of IC1 will drop immediately. The yield of IC1 abruptly comes to be low, permitting T1 to direct. This triggers the monostable (IC2) and the caution sounds.

Build the circuit on a normal PCB and house in a plastic case. Keep LDR1 inside a dark tube to build its affectability. Alter preset VR1 until LED1 turns off at the specific light level. Keep LDR1 confronting the door of the room or the range to be ensured. Affectability of the circuit hinges on upon the correct change of VR1. Assuming that VR1 is effectively balanced, the circuit can locate a moving individual from a separation of around the range of three metres.

Good luck on your light fence project 🙂
