Simple R/C Circuit Diagram

simple r/c circuit

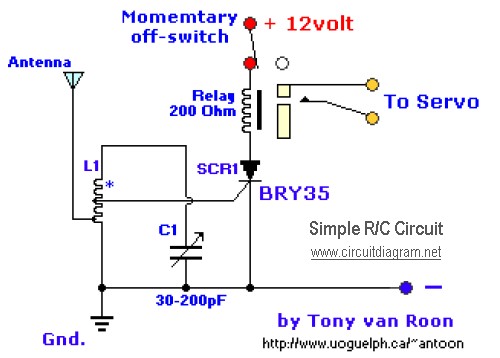

Simple Radio Control Circuit to actuate common electronic device. The circuit specifies a whip or wire antenna which just means a solid piece of wire 6-12 inches lengthy (15-30cm). The antenna coil is experimental, however you are able to begin with ten to 12 turns of #22 (0.7mm) magnet wire, and 5/16″ (8mm) coil diameter.

Antenna wire is soldered at 1/2 turn of the coil and the gate of the BRY35 is soldered about halfway the coil. This circuit will transmit as much as 100-feet with the above specifications @ 30uA.

This schematic diagram come from circuit: Very Simple Radio Control (R/C).
Go to that page to read the explanation about above circuit design.

In the electrical sector, a schematic diagram is usually used to describe the design or model of equipment. Schematic diagrams are usually utilized for the maintenance and repair of electronic and electromechanical devices / units. Original schematics were made by hand, using standardized templates or pre-printed adhesive symbols, but nowadays Electrical CAD computer software is often used.

In electronic design automation, until the 1980s schematics were virtually the only formal representation for circuits. More lately, using the progress of computer system technology, other representations were introduced and specialized computer languages were developed, because with the explosive development of the complexity of electronic circuits, classic schematics are getting less practical. As an example, hardware description languages are indispensable for contemporary digital circuit design.
