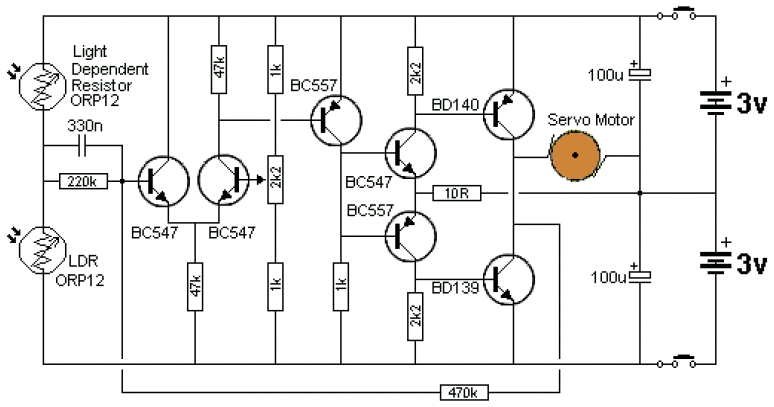

When equal light is detected by the photo resistors the voltage on the base of the first transistor will be mid rail and the circuit is adjusted via the 2k2 potensiometer so the motor does not receive any voltage. When one of the LDR’s receives more (or less) light, the motor is turned on / activated. And the same thing will be happen when the other LDR receives less or more light.

This schematic diagram come from circuit: White Line Follower.
Go to that page to read the explanation about above circuit design.

In the electrical sector, a schematic diagram is usually used to describe the design or model of equipment. Schematic diagrams are usually utilized for the maintenance and repair of electronic and electromechanical devices / units. Original schematics were made by hand, using standardized templates or pre-printed adhesive symbols, but nowadays Electrical CAD computer software is often used.

In electronic design automation, until the 1980s schematics were virtually the only formal representation for circuits. More lately, using the progress of computer system technology, other representations were introduced and specialized computer languages were developed, because with the explosive development of the complexity of electronic circuits, classic schematics are getting less practical. As an example, hardware description languages are indispensable for contemporary digital circuit design.
