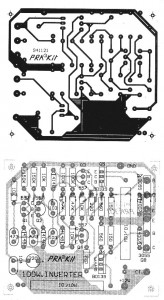

The following diagram is an inverter circuit which will give you 220V AC 50Hz with maximum power of 100W. This inverter built using transistors both the square wave generator and the amplifier.
Inverter Diagram:
The Q1 and Q2 used generate square wave. Q5-Q8 amplify the signal and the transformer to increase the AC/square wave current from 12VAC to 220V AC 50HZ.
Circuit diagram of '100W Inverter 12VDC to 220VAC' was posted under category: Inverter. Tags:
