400W Power Amplifier “Safari”

This 400W power amplifier circuit often called as “safari” amplifier. The below circuit design is for single channel only, build two identical circuit for dual/stereo channels.

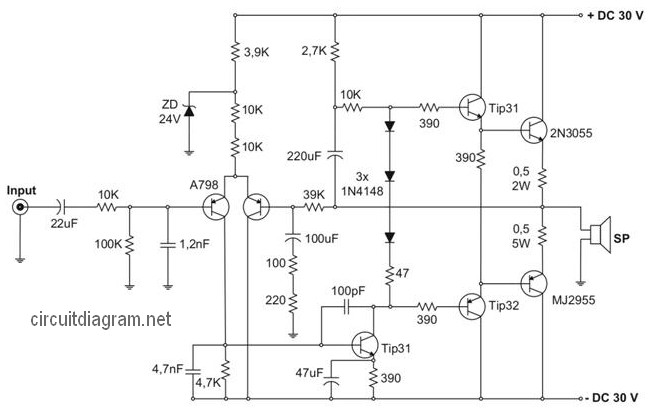

400W Power Amplifier - Safari

The 400W power amplifier designed using two couples of power transistors that are TIP31 with TIP32 and 2N3055 with MJ2955. These types transistor are well known and widely used for the amplifier circuit and high current low voltage DC power supply circuit.

Take a note that you must use aluminium heatsink (and a fan) to prevent over heating on the transistor (2N3055/MJ2955). This circuit require symmetrical/dual polarity power supply. You may use this dual polarity power supply circuit. Use 5A center tapped transformer with voltage output of 25V-0-25V or 32V-0-32V. The capacitor type is electrolytic capacitor, recommended value: 4 x 6800uF/63V (minimum). 10000uF will be better.

Have any Question or Comment?

9 comments on “400W Power Amplifier “Safari”

Tanmay bar

I want same audio diogram 400,800,1000,2000w .please sand my email id

Marc Vendette

I cannot be 400 Watts. A single pair of complementary transistor 2N3055/MJ2955 is suitable for a power amplifier of 100 Watts rms MAXIMUM. Also, a power rail of +/- 30 Volts is not enough for a 400 W power amp. It is probably 40 W rms power amp.

Theoretically, an output of 30 V Peak (that’s what the power supply gives) is about 56 Watts rms in 8 Ohms load. It doubles in 4 Ohms load, however, I don’t recommend to use this kind of power amp on a 4 Ohms load. In general, any single pair of power transistor is not enough for a 4 Ohms load.

George unknown

I drafted it… NO SOUND!

sebin jacob

is it actually 40w or 400w

sebin jacob

does this circuit works …what will be the RMS output at 8ohms and 4 ohms load

James Lungu

is it posible to get 400w with this diagram and its power suply.may be 40w please clearify.has any one build this amp and got 400?


circuit diagram of 400W Power Amplifier Safari is belonging to which class of power amplifier.
